Our oval-shaped duct adopts an innovative direct-forming process from spiral round duct. We’ve upgraded its structure to significantly boost stability, and used a multi-cylinder system to flawlessly transform round to oval—creating a far more refined shape than earlier designs.
Code SH :
8462290000Min. Commande :
1 SetDélai de fabrication :
10-20 Working DaysModalités de paiement :
T/T (30% Deposit + 70% Balance Before Shipment), L/C, D/PMéthode d'emballage :
Export Standard Wooden Case (With Iron Frame Reinforcement & Waterproof Film)Période de garantie de qualité :
12 MonthsCapacité de production annuelle :
300 Sets/YearCONCEPTION CLIENT OU OEM :
AvailableRound Duct Flange Forming Machine
I. Round Duct Flange Forming Machine's Features:
Innovative Forming Process & Refined Structure：Adopts an innovative direct - forming process from spiral round ducts. With a multi - cylinder system, it flawlessly transforms round ducts into oval ones, creating a far more refined shape than earlier designs. Meanwhile, the upgraded structure significantly enhances stability.
1. Powerful & Adaptable Equipment
Core & Power: Equipped with a motor as the core component, with a power of 18.5kw, capable of processing sheets with a thickness of 0.4 - 1.2mm, suitable for various material thickness requirements.
Size & Capacity: The equipment dimension is 563012501130mm, and it can produce oval ducts with a maximum length of 3100mm, meeting diverse production specifications.
2. User - Friendly & Reliable Support
Operation & Customization: Features easy operation. Voltage (380v/220v) and color can be customized according to customer requirements.
Quality Assurance: Provides video outgoing - inspection and machinery test reports. Offers a 1 - year warranty, ensuring reliable after - sales service.
II. Technical Parameters
1.Machine name: Ovalizer Machine
2.Thickness range: 0.4-1.2mm
3.Power: 18.5 kW
4.Weight: 2720 kg
5.Dimension: 5630×1250×1130 mm

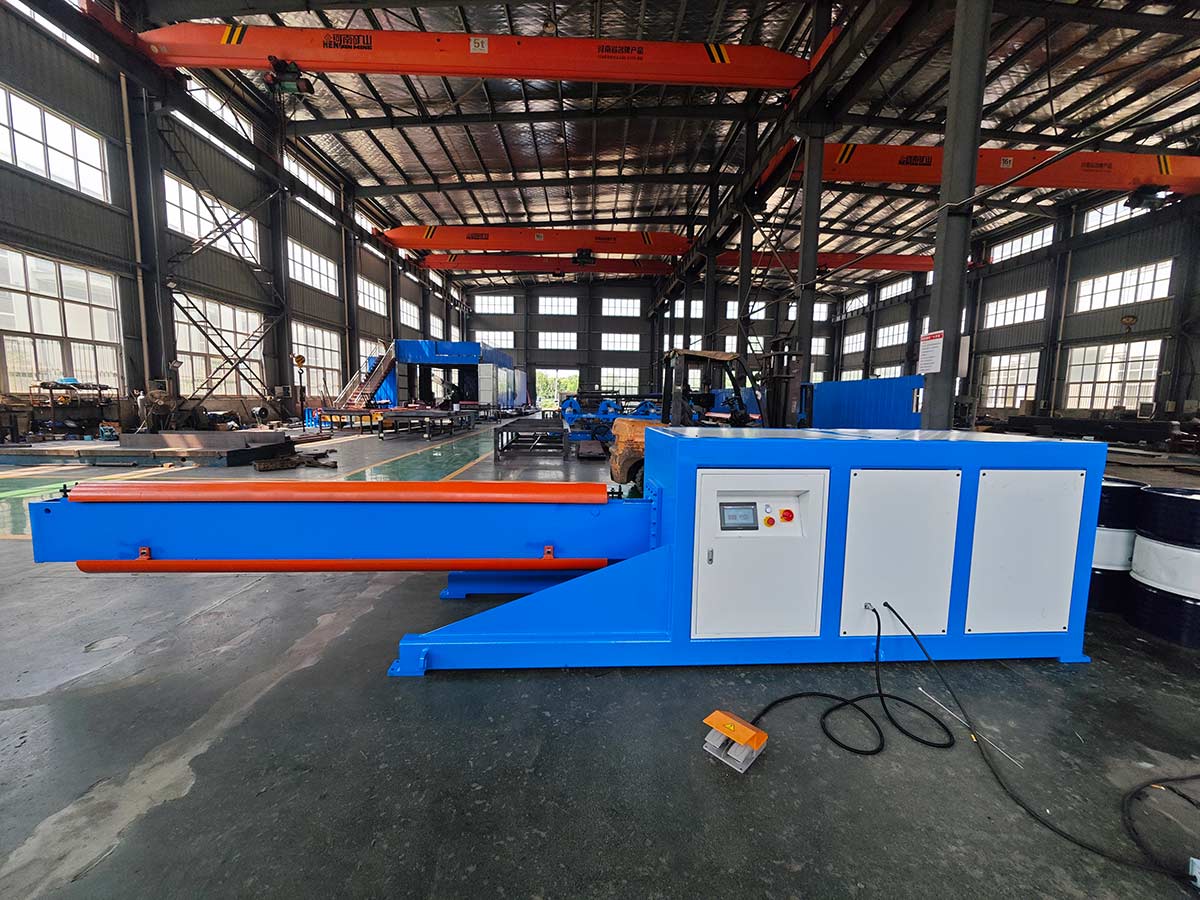

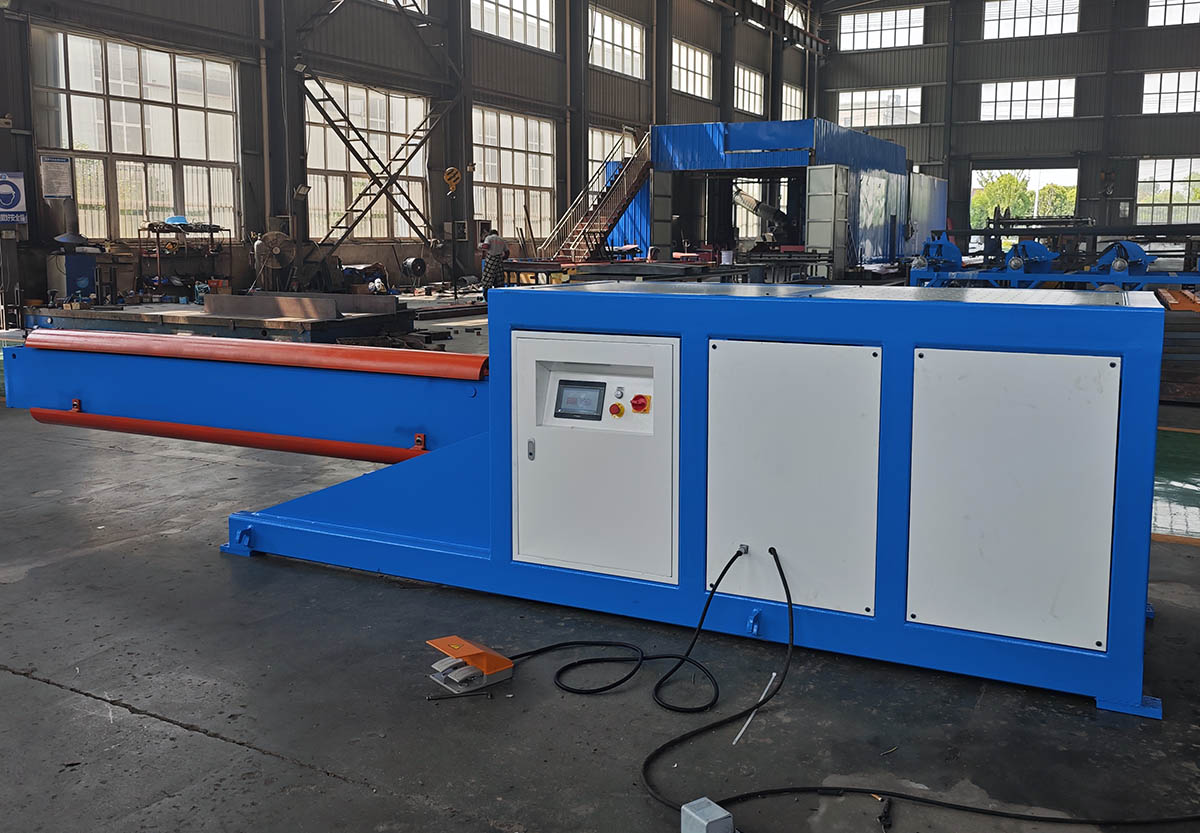

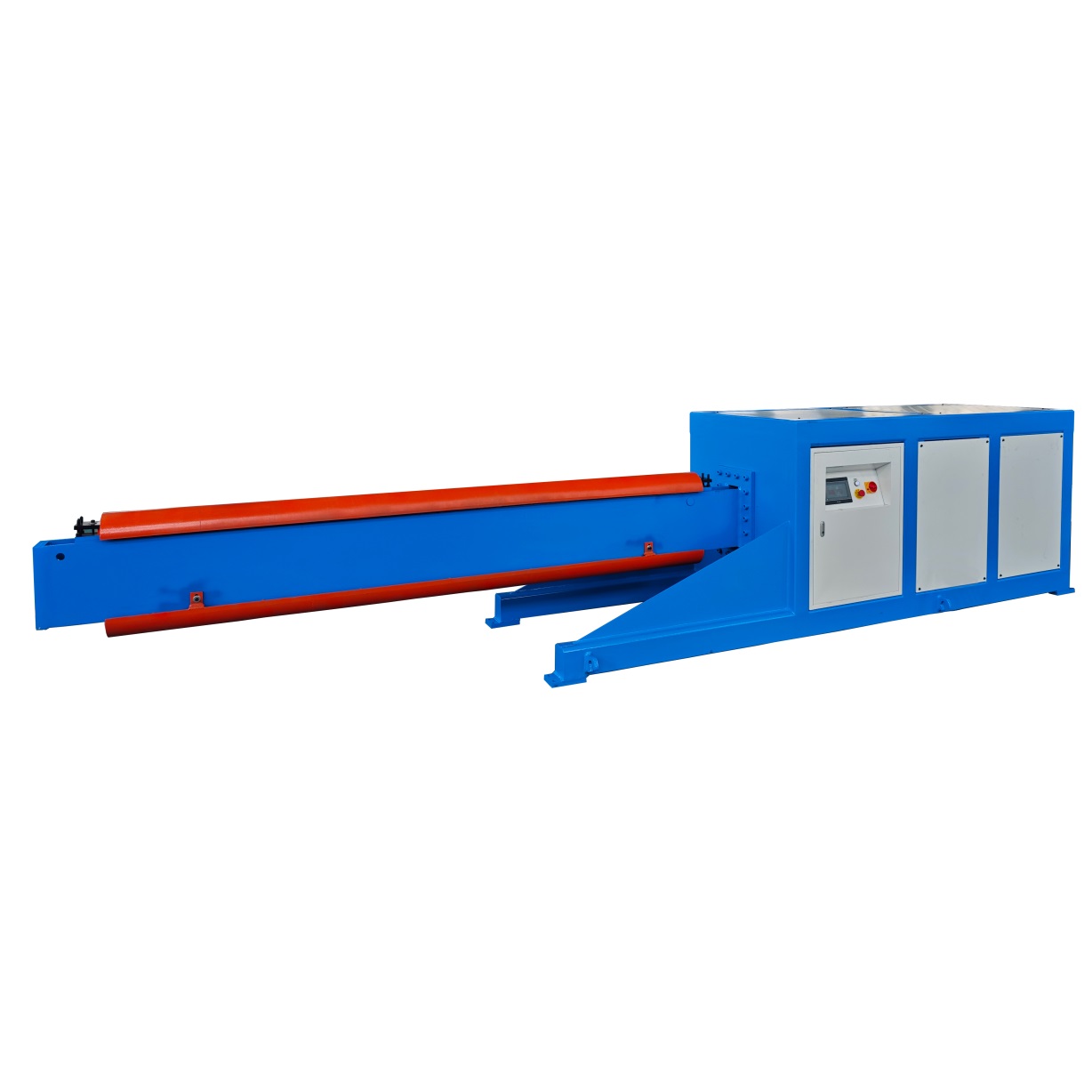

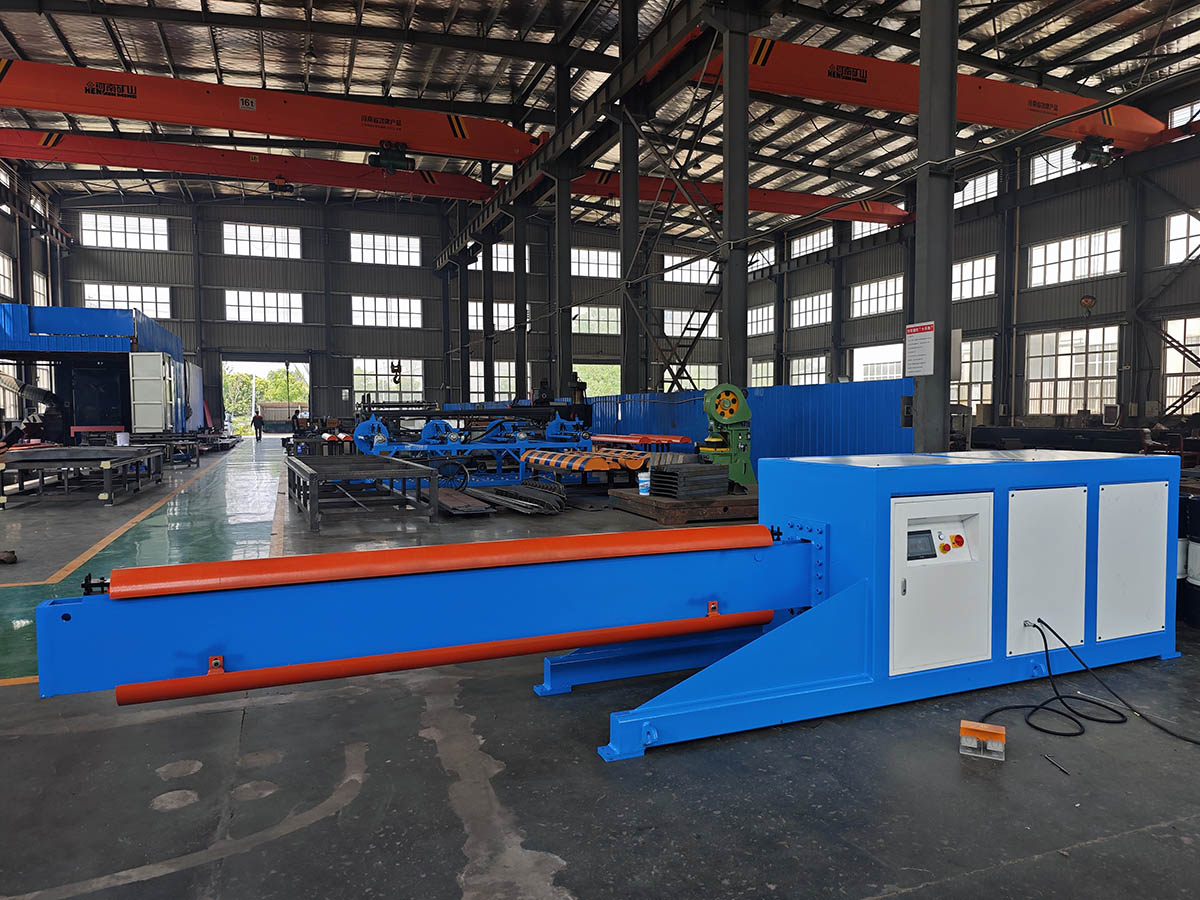

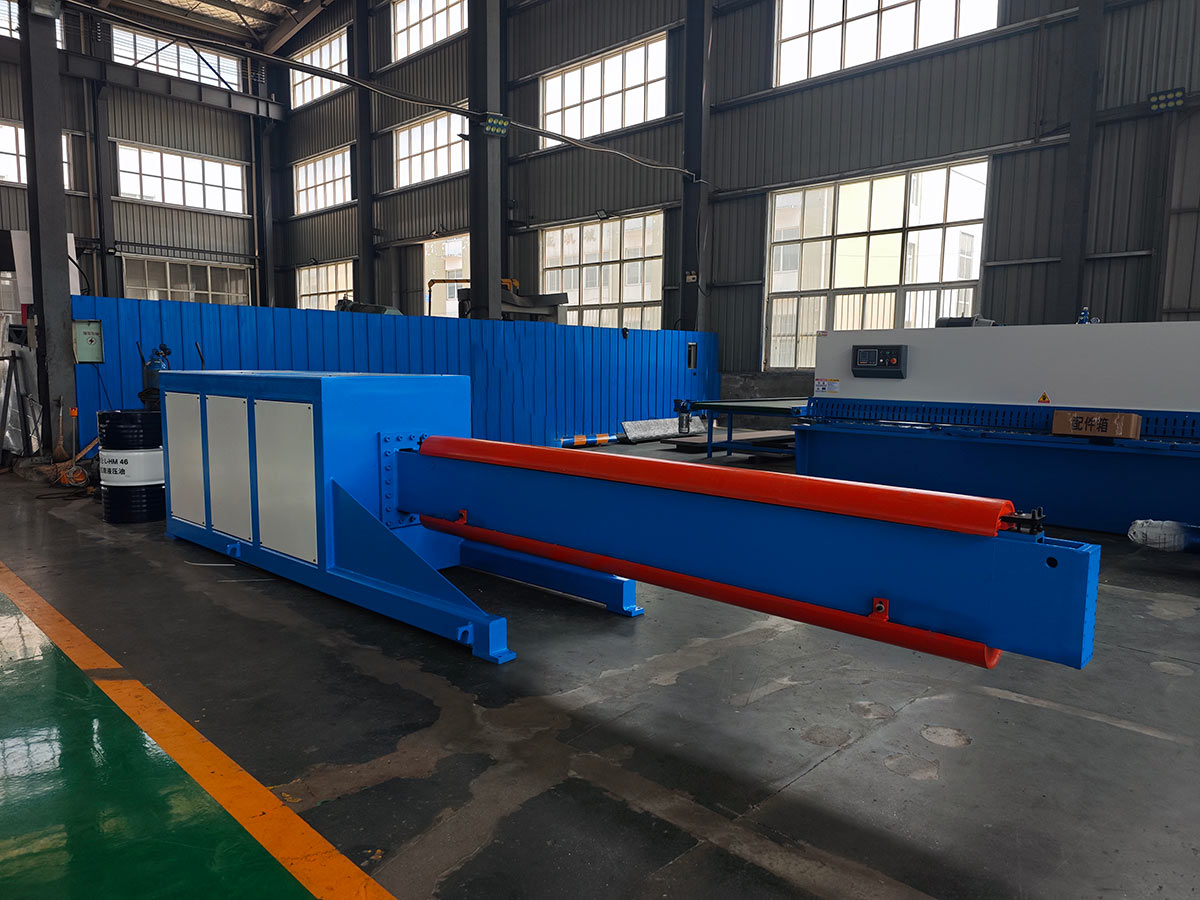

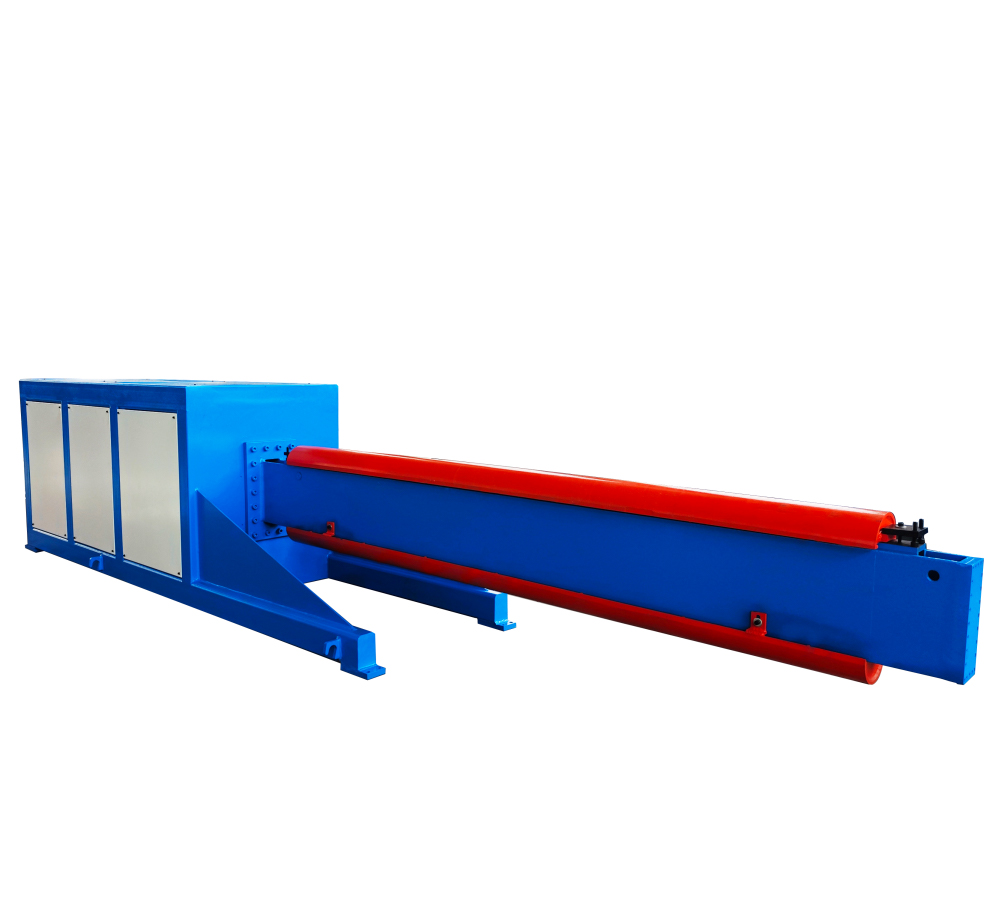

III. Real Photos:
IV. Quality Certifications:
V. FAQ:
Q: Factory or trading company?
A: Professional direct manufacturer.
Q: Not sure how to operate the machine?
A: Multiple support options:
Attached detailed operation manual.
Our engineers on-site, or your team trained at our factory.
24/7 Phone & Email support.
Q: What payment terms do you accept?
A: Support T/T, L/C, Western Union. Other methods negotiable by mutual agreement.
Q: Machine warranty period?
A: 1 year.
Main parts: high tool steel with special quenching (anti-corrosion, wear-resistant).
Free replacement for quality-related broken parts.
Q: Do you have stock?
A: Yes. Over 100 units in stock for quick delivery.
Q: How do you control quality?
A: Quality first. Strict control through the entire production process.
Q: Shipping cost from China to us?
A: Sea/air to your port/door. Provide your nearest port/address (with postcode) for quote. Reliable agents ensure safe, on-time delivery.
